Automatic Flute Laminating Machine , Corrugated Cardboard Auto Flute Laminator

Automatic Flute Laminating Machine , Corrugated Cardboard Auto Flute Laminator
Send Inquiry
Product Code : 06
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price Range
  • 5000.00 - 15000.00 USD ($)
Product Specifications
  • Product Type
  • Paper Lamination Machine
  • Automatic Grade
  • Automatic
  • Control System
  • PLC Control
  • Drive Type
  • Electric
  • Heating System
  • Other
  • Power Source
  • Electric
  • Voltage
  • 380V/50HZ
  • Weight (kg)
  • 4800 Kilograms (kg)
  • Dimension(L*W*H)
  • customized
  • Feature
  • High Efficiency, Lower Energy Consumption, Low Noise, ECO Friendly, High Performance
  • Color
  • customized
  • Warranty
  • 12 month
Product Description

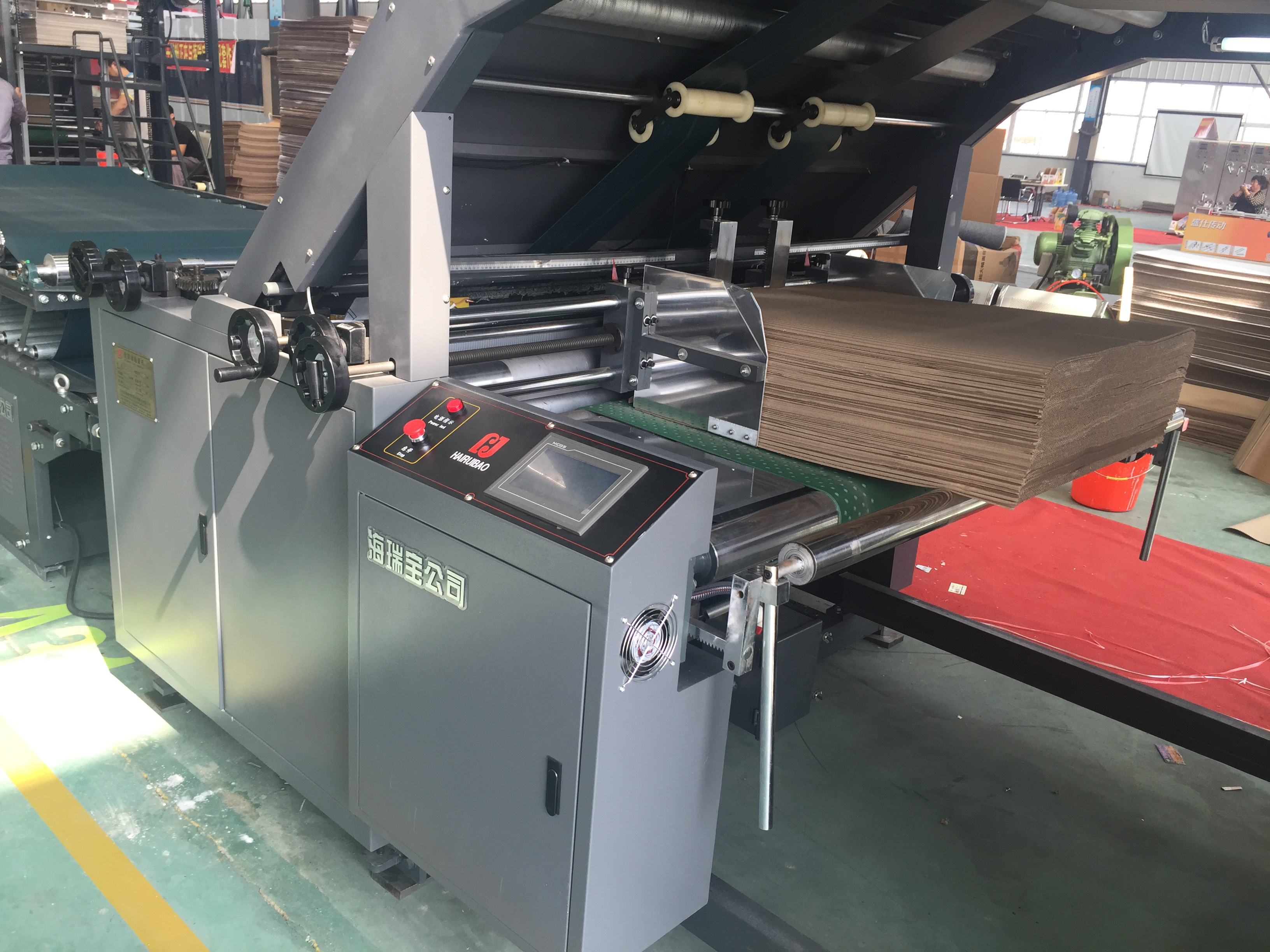

​Carrugated Cardboard Auto Flute Laminating Machine Is Also Called Carrugated Cardboard Auto Flute Laminater Machine



1. Automatic flute laminator adopts chain pusher and back registion system together with spring blade side lay and vacuum sucking conveying system make this series of machine fit a larger of paper, high precision while remaining the features of easy operation and maintenance.

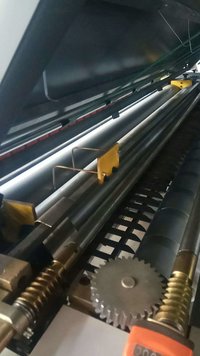

2. The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.



3. Balance-tested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine run at low noise with high precision.



4. The machine adopts automatic glue supply and recyclable glue circulating system.



5. Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.


Model Unit JCTMJ-1300 JCTMJ-1450 JCTMJ-1600
Max.Cardboard size(W*L) mm 1300*11000 1450*11000 1600*11000
Min.Cardboard size(W*L) mm 350*350 350*350 350*350
Laminating precise mm

≤±1.5

≤±1.5 ≤±1.5
Max.Machine speed m/min 100 100 100
Total power kw 120 1 13
Overall seize m 12.5*2.15*2.6 12.5*2.3*2.6 12.5*2.45*2.6
Weight T 6.8 7.2 8.0


1. All material are inspected according to ISO-9001 standard and key parts such as the harmonic gear and bearing are imported ones.



2. The bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet. It can do 3 or 5 ply board to sheet lamination or board to board lamination. The range for top paper can be 200-600 GSM with top paper advance or alignment function.



Trade Information
  • FOB Port
  • Tianjin Port
  • Supply Ability
  • 200 Set Per Year
  • Delivery Time
  • 30 Days
  • Packaging Details
  • containers
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
