Carton Box Flute Laminator Machine , Semi Automatic Flute Laminator

Carton Box Flute Laminator Machine , Semi Automatic Flute Laminator
Send Inquiry
Product Code : 06
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price Range
  • 5000.00 - 20000.00 USD ($)
Product Specifications
  • Product Type
  • Paper Lamination Machine
  • Automatic Grade
  • Semi Automatic
  • Control System
  • PLC Control
  • Drive Type
  • Electric
  • Heating System
  • Other
  • Power Source
  • Electric
  • Voltage
  • 220/380/440v 50Hz
  • Weight (kg)
  • 3000 Kilograms (kg)
  • Dimension(L*W*H)
  • customized Millimeter (mm)
  • Feature
  • Lower Energy Consumption, Low Noise
  • Color
  • customized
  • Warranty
  • one year
Product Description

Carrugated Cardboard Semi-Automatic Flute Laminating Machine Is Also Called Carrugated Paperboard Semi-Automatic Flute Laminater Machine

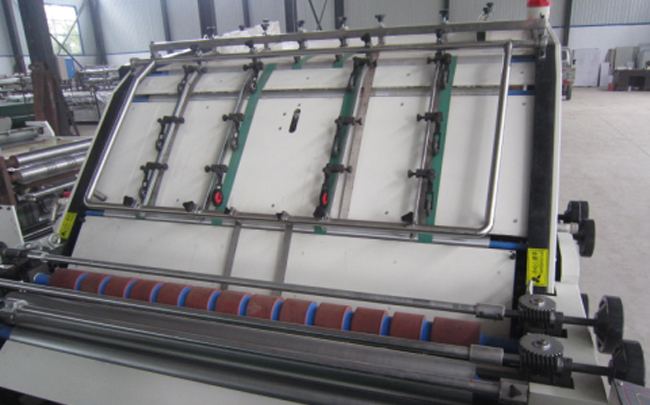

This Semi auto corrugated flute laminator machine use bottom sheet automatically sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating.


Model BZJ-1300B BZJ-1400B BZJ-1500 BZJ-1600
Max. Size Of Cover Face 1300mm×1100mm 1400mm*1250mm 1500mm*1250mm 1600mm*1250mm
Min. Size Of Cover Face 360mm×360mm 360mm×360mm 360mm×360mm 360mm×360mm
Economic Speed 0-80PCS/min 0-80PCS/min 0-80PCS/min 0-80PCS/min
Laminating Precision ±1 ±1 ±1 ±1
Power 6kw 6kw 6.5kw 6.5kw
Overall Dimension 8.8m×1.95m×1.5m 8.8m*2.05m*1.5m 8.8m*2.15m*1.5m 8.8m*2.25m*1.5m
Weight About 3T About 3T About 3.5T About 3.5T



1. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking.



2. The humanized design that manually feeding from the front makes delivery more easier and efficient.



3. Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.



4. Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm.

Trade Information
  • FOB Port
  • Tianjin Port
  • Supply Ability
  • 100 Set Per Year
  • Delivery Time
  • 30 Days
  • Packaging Details
  • film or packed according to your request.
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
