Chain Feeding Rotary Creaser Slotter Machine

Chain Feeding Rotary Creaser Slotter Machine
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price Range
  • 3000.00 - 15000.00 USD ($)
Product Specifications
  • Product Type
  • corrugated carton slotting machine
  • General Use
  • Apparel, Chemical, Food
  • Weight (kg)
  • 1500 Kilograms (kg)
  • Type
  • Corrugated Box Making Machine
  • Box size
  • customized
  • Function
  • can perform slotting, slitting, creasing one time
  • Automatic
  • No
  • Drive Type
  • Electric
  • Power
  • about 6kw
  • Voltage
  • 440/410/380V 50Hz customized
  • Dimension(L*W*H)
  • customized
  • Feature
  • Electric Dual System, Touch Screen, Dynamic Balancing
  • Color
  • customized
  • Warranty
  • 1 year
Product Description

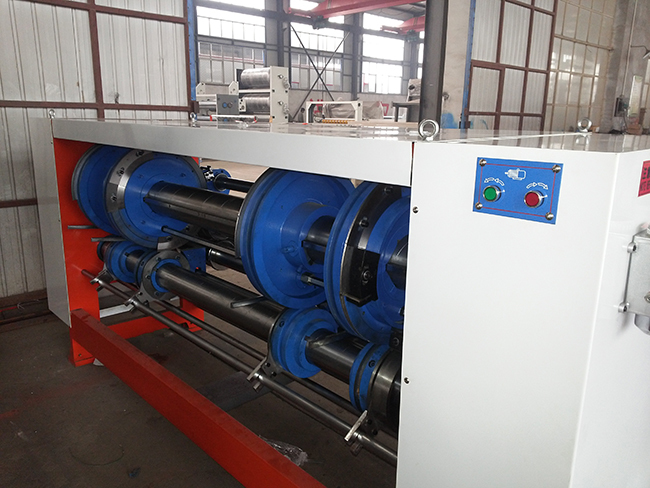

Chain Feeding Rotary Creaser Slotter Machine for Corrugated Cardboard

Our offered machine is corrugated slitting creasing corner-cutting slotter and is combination equipment; it can perform slotting, slitting, creasing one time. The machine is sturdy in construction and hassle free to operate. Further, it is used for slotting sheets for corrugated boxes.

Description

  • It has semi-automatic chain feeding system, side lay gauge can adjust the feeding position that ensure feeding accurately

  • Planet gear type motorized observes and reverses adjustment in 360 degree

  • Manual adjusting of four box height cutter synchronous (motorized adjusting is option)

  • The entire shaft is chrome plated

  • High quality 48Cr Mo slotting knife with induction hardness

  • Speed variable motor drive machine with adjustable speed

  • The machine is equipped with the photo-electricity counter that display production amount

Details of Machines

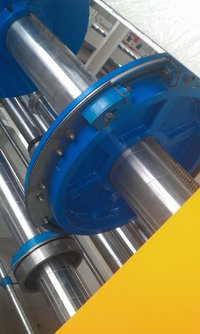

  • Slotting blade of front and back phase and 360 degrees electric adjustment, it has indicating device that adjusts the phase quickly, improves work efficiency, and reduces waste

  • Carton height four groups blade can be adjusted synchronous and electric adjust, gear transmission uses circulating lubrication system, reduces noise; it also provides prolong working life

  • Creasing, slotting left and right adjustment uses four-wheel synchronous operation; ensure no dislocation to reduce waste

  • Installed electronic counter, makes the production quantity statistics and is convenient, PLC computer adjust the order

  • The upper and lower blade and the pressing line wheel is electric and horizontally adjusted, electric side way motor on the upper blade moves smoothly to protect the motors and blade, it is easy to maintain and the change is more easy

  • The bottom knife shaft and pressing line wheel knife shaft is adjusted eccentric cross head shoe, that can through 3, 5, 7 layer paperboard spacing adjust the pressure

  • Paper feeder part adopts electric adjustment and is convenient to use

  • Equipped with an emergency stop button that makes the operation safe

  • Provided with frequency conversion motor and PLC touch screen multi-function control system

Technical parameter

Parameter

Unit

Model

JCFQK-2000

JCFQK-2200

JCFQK-2500

Paper-feeding area

mm2

1470x1950

1470x2150

1470x2450

Max.slot cutting depth

mm

350

350

350

Width of slot

mm

7.0

7.0

7.0

Min.distance of slot

mm

150

150

150

Slotting speed

sheets/min

0-70

0-70

0-70



Trade Information
  • FOB Port
  • Tianjin Port
  • Supply Ability
  • 150 Set Per Year
  • Delivery Time
  • 30 Days
  • Packaging Details
  • container, wooden cases or pallets by LCL. plastic or no package
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
