Corrugated Paperboard Production Line

Corrugated Paperboard Production Line
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • 100000-500000 USD ($)
Product Specifications
  • Type
  • Other
  • Automatic Grade
  • Automatic
  • Control System
  • Frequency Speed Control
  • Cutting Speed
  • customized
  • Cutting Size
  • customized
  • Cutting Thickness
  • customized
  • Voltage
  • 220V/380V
  • Power
  • 90-130kw
  • Weight (kg)
  • customized Kilograms (kg)
  • Dimension(L*W*H)
  • customized Millimeter (mm)
  • Color
  • customized
  • Warranty
  • one year
Product Description

Design Speed 120 Meters/min Steam Heating 5ply Corrugated Cardboard Production Line

This corrugated cardboard or paperboard production line is highly professional equipment used for producing corrugated cardboard or paperboard. The machine is designed with utmost precision and has a rugged design that is manufactured from quality, proven material. We manufacture different grade of 3, 5 and 7 ply corrugated production line with different fitting. These are developed and designed to provide the speed of 60 to 220m/min; paper width of 1600 to 2200mm and A, B, C, E UV flute production line that can satisfy the needs of our various customers.

Machine Description

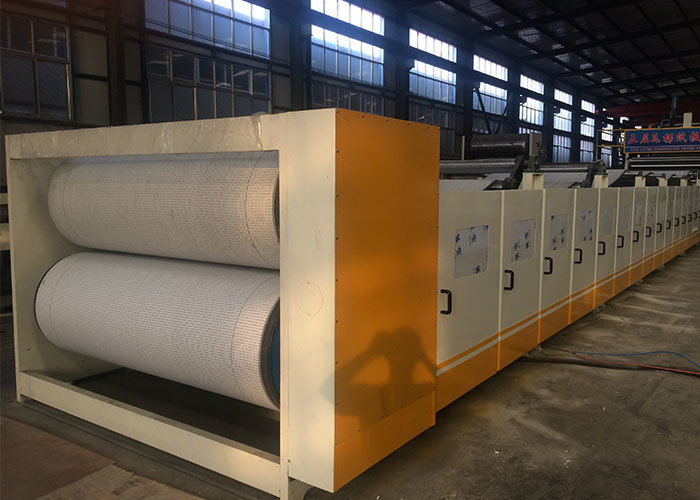

This production line consists of the mill roll stand, liner(medium paper), pre-heater , single facer machine, conveyor bridge, gluing machine, double facer machine, thin blade slitter scorer, helical NC cut-off machine, right angle sheet feeding machine, stacker, double decks conveyor bridge, heating system, air compression system and glue making system and so on.

Technical Parameters

Note: Test basis paper for production line should meet the following requirement;

  • Basis paper scale ≥B Basis paper moisture: 11%±1%

  • Liner 150—200g/m2 medium paper 150---200g/m2

  • Corrugated paper 105—180g/m2

Note: Some parts are equipped by consumers

  • Compressor air tube, glue pipe, steam pipe and air return pipe

  • Equipment machine grease, lubrication oil, engine oil

  • Water, electricity, gas installation, ground work

  • Test basis paper, corn starch, caustic soda for industrial use, borax and other material

The machine makes craft paper coil to 3/5/7 layer corrugated cardboard. Another model is 100-130 m/min Corrugated Paperboard Production Line that is 5 Ply Cardboard Box Making Machine. It has a working speed of 100 to 130m/min and steam heating.

Technical parameters

Basis paper scale ≥B Basis paper moisture: 11%±1%

  • Liner 150—200g/m2 medium paper 150---200g/m2
  • Corrugated paper 105—180g/m2
  • Note: some parts equipped by consumers

Model

Layer

Heating Method

Design speed

Working speed

Effective width

Cutting length and precision

Total power

Dimension
(L x W x L)

WJ150-1600

5

Steam heating

150 m/min

120m/min

1600mm

500—9999mm
±1mm

90KW(380V 50HZ)

70m×5m×4.5m

W80-1800

5

steam heating

80 m/min

60m/min

1800mm

120KW(380V 50HZ)

56m×5.2m×4.5m

WJ120-1800

5

steam heating

120 m/min

100m/min

1800mm

130KW(380V 50HZ)

70m×5m×4.5m

WJ100-2000

5

steam heating

100 m/min

70-80m/min

2000mm

100KW(380V 50HZ)

70m×6m×4.5m

WJ150-2000

5

steam heating

150 m/min

120m/min

2000mm

100KW(380V 50HZ)

87m×5.5m×4.5m

W100-2200

5

steam heating

100 m/min

80m/min

2200mm

150KW(380V 50HZ)

75m×6m×4.5m

W120-2200

5

steam heating

120 m/min

80m/min

2200mm

180KW(380V 50HZ)

80m×6m×4.5m

W100-1600

5

steam heating

100 m/min

80m/min

1600mm

120KW(380V 50HZ)

65m×4.5m×4.5m

WJ150-1600

5

steam heating

150 m/min

100-130m/min

1600mm

300KW(380V 50HZ)

120m×5.8m×4.5m

Trade Information
  • FOB Port
  • Tianjin Port
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • Supply Ability
  • 22 Unit/Units Per Year
  • Delivery Time
  • 40 Days
  • Packaging Details
  • 4 or 5*40GP container, no package by FCL
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
