Diameter Paper Pipe Making

Diameter Paper Pipe Making
Send Inquiry
Product Code : 01
Price And Quantity
Product Specifications
  • Product Type
  • Paper Tube Machine
  • Type
  • Other
  • Automatic
  • No
  • Drive Type
  • Electric
  • Power
  • 44KW
  • Feature
  • Electric Dual System, Dynamic Balancing
  • Color
  • customize
  • Warranty
  • 1 year
Product Description

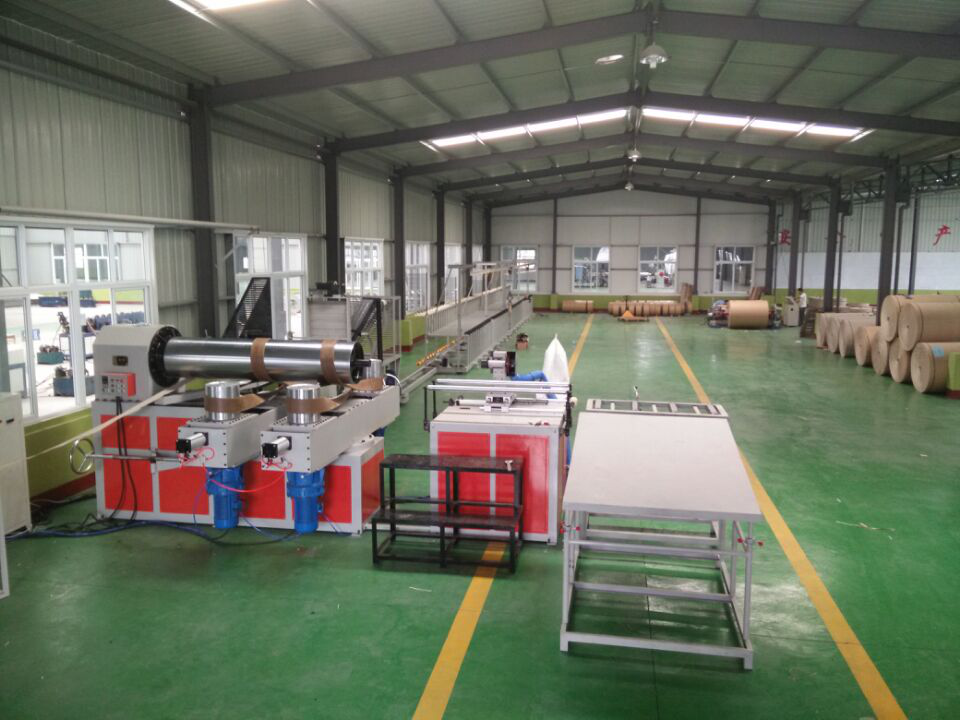

Four Heads Paper Tube Machine for 305 - 605mm Diameter Paper Pipe Making

This offered paper tube making machine imitates the latest model of paper tube making machine, it can make paper tube range from dia 305mm to 605mm, and the wall thickness of paper core can reach 2 to 30 mm even more.

Features

  • Depending on the tube, the speed is between 0 to 3 m/min

  • Independent transmission of four machine head makes it more powerful

  • Paper tube fixed-length mode provided for light control fixed length, this mode of operation is simple and easy to operate and suitable for novice operation

  • The host motor is of Hengshui Brand (11kW × 4), great output power, and has speed-adjustable function

  • Belt tension control is manual and pneumatic; by adjusting the pressure of the cylinder can control the tightness of the belt. Avoid the boot with increase of the paper, manual frequency adjustment belt step

  • By adjusting the foot of the console one can achieve the level of stability of the machine

  • Taiwan's motor is a strong motor in Shanghai; it has low noise, strong power and low failure rate

  • Cutting table synchronization is for mechanical and pneumatic type, the return of cutting table is by pneumatic control

  • Cutting saw advance and retreat by the pneumatic; the speed of the blade can be adjusted by the cylinder shut-off valve to control, which is extremely easy

  • Inverter is of Anritsu brand, this is well-known brand in the market, the practical value is relatively high, low failure rate, and repair rate is small. By the frequency control motor one can achieve the machine speed adjustment

  • Control System is PLC dimensional, the system response is fast, accurate data processing, good stability, and anti-interference ability

  • The man-machine interface is of Kunlun brand; through it one can adjust the cutter, time and other data, it is more user-friendly than the traditional operation panel

  • Host belt roller diameter is 350mm, instead of the traditional belt roller that greatly increases the belt roller and belt friction, thus avoid the belt slip

  • Discard phenomenon improves the quality of paper tube production, for the protection of the belt roller cover is provided to improve the production and safe operating factor, this is more secure and user-friendly

  • The bottom of the host rack is designed to facilitate the host operator tools and emergency items stored

  • The main electrical components are of CHINT brand; cylinder components are of Austrian brand. These are durable, practical and have higher value characteristics

  • Cutting Taiwan and the host of the split structure, elongated bonding and cutting the distance is conducive to paper tube bonding time

  • The feeding device for the paper feeding rack is made of iron wire cutting; so each layer of paper is more even and improve the flatness of the paper tube

  • The main table is made of stainless steel plate that effectively prevents the bump by providing the external force and is anti-corrosive as oil and glue can make surface corrosive

Technical parameters

Paper tube machine model

FUTU-600 CNC four head paper tube machine

technical parameter

Control system

Reel paper layers

5-52 layer

Inverter

Anruiji products

Paper tube diameter

305-605mm

The main implementation of the device (contactors, etc.)

Schneider / CHINT

Paper tube thickness

2-30 (mm)

Signal element (photoelectric switch, etc.)

Funing / Shanghai Times

Winding speed

0-3(m/min)

Cylinder components

tian ao products

Fixed length model

Light

Adjust the angle

Manual adjustment

Winding head

Four handpiece

Synchronous control

Pneumatic

Cutting method

High speed sawing

Fixed-length way

Proximity switch

Roll core die fixing method

Flange tightening

PLC

WECON product

Gluing method

Double side gluing

HMI

Kunlun products

control mode

Frequency control

-

-

input voltage

380V/220V

-

-

Number of operators

3-6

Configuration device

Size (mm)

Pipe rack

automatic

Main dimensions: length x width x height

3300mmx3200mmx2100mm

Belt adjustment

Pneumatic and manual adjustment

Area: length x width

36000mmx10000mm

Paper rack swing angle

Electric adjustment

Hub diameter

350mm

Glue supply

Automatic stainless steel heating adhesive slot

Hub height

360mm

At the end of the paper for the lubrication oil

Automatic lubricating stainless steel basin

Minimum tread

1800mm

Tension regulation

Mechanical regulation

Maximum wheel

2200mm

Paper frame type

Movable hoisting paper rack

Total weight

11T

Reel mandrel

1

drive system

Belt reel

2

Main motor power

44kw Hengshui Branch peak

Application tools

Yes

Host speed

16r/min

Base and paper device

Paper rack, paper basin

Maximum wheel speed

16r/min

Blanking frame

Stainless steel plate

Hub output torque

20000N.m

Host

Stainless steel table-board

Reducer model

XLD-X8

Paper guide wheel

Stainless steel pipe

Transmission chain model

16Ax2

-

-

Hub drive

4 wheel drive

-

-

Cutter motor

5.5kw Shanghai high speed

-

-

Bearing

Universal Bearings

-

-
