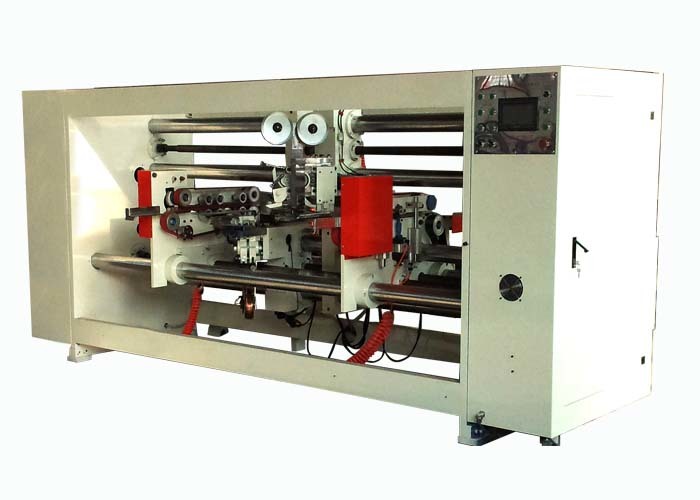

Double Servo Two Piece Carton Box Stitching Machine Touch Screen Operated

Double Servo Two Piece Carton Box Stitching Machine Touch Screen Operated
Send Inquiry
Product Code : 12
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price Range
  • 10000.00 - 30000.00 USD ($)
Product Specifications
  • Product Type
  • stitching machine
  • General Use
  • Apparel, Beverage, Chemical, Commodity, Food
  • Material
  • Cardboard
  • Weight (kg)
  • customized Kilograms (kg)
  • Type
  • Box Stitching Machine
  • Box size
  • customized
  • Automatic
  • No
  • Drive Type
  • Electric
  • Power
  • customized
  • Voltage
  • 380v50hz customized
  • Dimension(L*W*H)
  • customized Millimeter (mm)
  • Feature
  • Touch Screen
  • Color
  • customized
  • Warranty
  • 12 month
Product Description

Corrugated Cardboard Double Servo Two Piece Stitching Machine For Carton Box



Carton Box Double Servo Two Piece Stitching Machine Is Also Called Corrugated Box Double Piece Stitcher Machine



1. Double servo drive, accurate accuracy, reduced mechanical transmission, can effectively reduce mechanical failure


2. Commonly used in large cartons, loading nails quickly and effortlessly.


3. This machine uses the computer screen to display faults and instructions.


4. Use horsepower: 18HP (Japan Yaskawa servo motor).


5. Backsplash motor function. Stepper motor drive is accurate in size and easy to change size


6. Paper feed rubber wheel gap electric adjustment


7. Touch screen operation, parameters (peg distance, number of nails, nail type, tailgate). Easy to change

Double Servo Two Piece Carton Box Stitching Machine Touch Screen Operated

Model FUT-2400mm FUT-2700mm FUT-3000MM

Max. sheet size(A+B)*2(mm)

4800 5400 6000

Min. sheet size(A+B)*2(mm)

1060 1060 1060

Max.sheet size length(mm)

2250 2550 2850

Min.sheet length(mm)

350 350 350

Max.sheet width(mm)

1200 1350 1500

Min.sheet width(mm)

180 180 180

Min.sheet height(C+D+C) (mm)

400 400 400

Stitching pitch(mm)

30-120 30-120 30-120
No.of stitching 1-99 1-99 1-99

Machine speed(stitch/min)

500 500 500
Power Required(HP) 18 18 18
Machine Length(mm) 6000 6000 6000
Machine width(mm) 3550 3850 4150
Machine Weight(kg) 4000 4100 4200

Max.stopper Measurement

600mm(C)
Max.TS width 45mm(E)

Min.Frist stitch Pitch

25mm(D) Uncover



Double Servo Two Piece Carton Box Stitching Machine Touch Screen Operated

1. Can be nailed single nail (/ / /), double nail (/ / // //), strengthen nail (/ / // //) suitable for customers' requirements for nail type.


2. It takes only two to three minutes to change the size.


3. The paper feeding section automatically counts, automatically sends out after the number, easy to bundle.


4. Can be nailed and uncovered (the minimum distance from the first nail to the side of the car is 25mm).


5. After the nail line is used, the automatic alarm device is used. (Avoid the missing nails caused by the nail line, and the defective products with less nails).


6. Semi-finished products are nailed into finished products, and the binding is only required to be operated by two people. The operation is simple and convenient, and the salary is reduced.


7. Work platform with hydraulic platform (optional)

Double Servo Two Piece Carton Box Stitching Machine Touch Screen Operated

Q:What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new
parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:What about the service after sale?
A: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.
Q: How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
Q:You are trade company or factory?
A:We are trade company but we also have own factories. Building trade company is just for exporting various types of packing machines.
Q. How long the machine could be made?
A:Normally speaking, machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a months.
