Gantry Corrugated Carton Box Making Machine / Stacker Paper Board Making Machine

Gantry Corrugated Carton Box Making Machine / Stacker Paper Board Making Machine
Send Inquiry
Product Code : 03
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price
  • 7000-15000 USD ($)
Product Specifications
  • Type
  • Other
  • Control System
  • PLC Control
  • Voltage
  • 380V50hz 3phase
  • Power
  • 4kw
  • Weight (kg)
  • 2000 Kilograms (kg)
  • Dimension(L*W*H)
  • customized Millimeter (mm)
  • Color
  • customized
  • Warranty
  • 1 year
Product Description

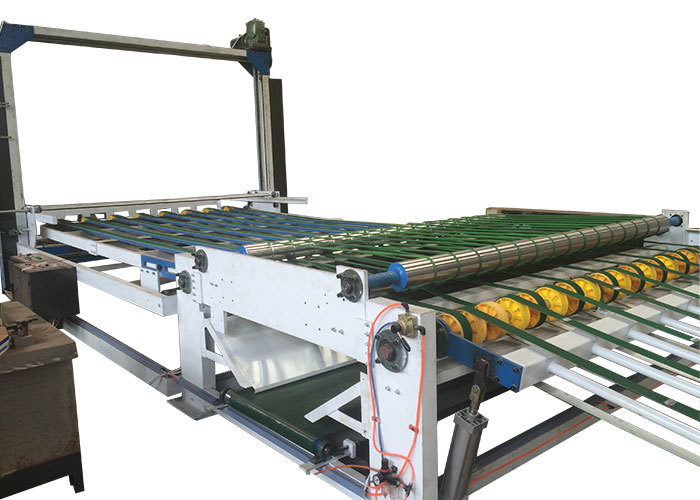

Gantry Stacker / Corrugated Paperboard Gantry Stacking Machine For Carton Box​



  • Corrugated Cardboard Gantry Stacker:Max stacking height: 2300mm
  • Max lower stacking length: 2300mm
  • Gantry stacking, motorized or hydraulic lift & down for the upper section with row-rollers stacking and motorized transverse ejecting for the lower section.
  • Wide belt conveying ,stable and in good order.
  • Electric pile up of the cardboard.
  • Photoelectric measure stacking height.


Max production speed

60-80/min

Effective width

1400mm/1600mm/1800mm/2000mm/2200mm

Number of layers

double layer

Distribution capacity

6KW

control voltage

220VAC

power voltage

440VAC

1.Board Catching table



♦ Manual and automatic control option



♦ The conveyor belt of the board catching arm: its tension can be adjusted independently without any inhibition of belt length. It is easy, flexible and rapid in adjustment.



2.Table lift-down



♦ Used strong chain drive, lift-down move smoothly



♦ Max stacking height 1300mm



♦ The lift-down motor is equipped with the braking facility to keep the fix position, don’t slide



3.Baffle



♦ Pneumatic control baffle, used sensor control stacking height



♦ Back baffle position is adjusted by hand according to board length



♦ The plain grainy belt has good friction coefficient to avoid the board slide

Trade Information
  • FOB Port
  • Tianjin Port
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • Supply Ability
  • 25 Set Per Year
  • Delivery Time
  • 30 Days
  • Packaging Details
  • wooden cases or pallets, container, plastic or no package
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
