Printing Slotting Die Cutting Machine

Printing Slotting Die Cutting Machine
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • 50000-100000 USD ($)
Product Specifications
  • Product Type
  • cardboard printer
  • Weight (kg)
  • 3000-10000 Kilograms (kg)
  • Automatic
  • Yes
  • Drive Type
  • Electric
  • Feature
  • Other, Low Energy Consumption, High Efficiency, Good Quality, Environmental Friendly, Low Noise, High Torque, Automatic Feeding
  • Color
  • White
  • Warranty
  • 1 year
Product Description

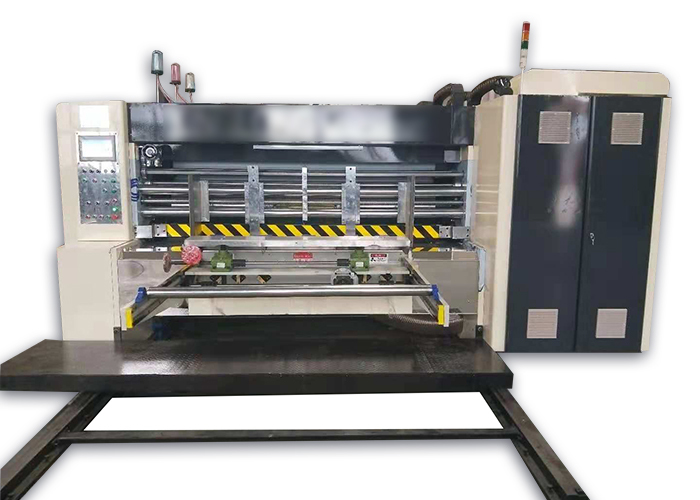

Automatic Lead Edge Feeding Flexo Printer Slotter Die Cutter Corrugated Boxes​Usage/Automatic Lead Edge Feeding Flexo Printer Slotter Die-cutter Machine for Corrugated Paperboard Box​

Our offered machine can complete the progress of the corrugated carton making by printing, slotting, die cutting and stacking. The machine adopts vacuum feeding suction, full computer control system and can save labor cost.

Features

  • All drive rollers are made of high quality steel, hard chrome plated and the surface is grinded

  • Drive gears are of high quality steel with heat treatment

  • The main drive roller adopts keyless connect, decreases the connection gap that ensure printing precision

  • Engineered oil automatic balance device that keeps the oil level equal in each unit

Feeding Unit

  • Continuous and skip cardboard feeding options available

  • Double feeding rubber roller has slot to prevent the overlarge pressure

  • Front feeding rubber roller with air cylinder cushioning device that makes feeding accurate and stable and will not destroy the hardness of the cardboard when the feeding space is small

  • The side baffles adopt electrical digital control (can add automatic or pneumatic aligning device)

  • The back baffle box can be adjusted automatically and the front baffles space adopts manual adjustment

  • Provided with brush dust-remove device and dust-absorption blower and can adjust the wind volume according to the cardboard size

  • Electric control unit’s separation is done with warming belt, to ensure worker safe

Printing Unit

  • The feeding, impression roller, rubber and anilox roller space are adjusted by self-locking device

  • Printing and phase fixed device and pneumatic brake

  • When the units are separated or cleaned, braking mechanism limit gear running and keep original gear’s position

  • The anilox roller adopts automatic pneumatic up and down device

  • Adopts pneumatic diaphragm pump inking, automatically recycle with water cleaning

  • With “clean printing plate memory” function, after washing the printing plate and the printing roller go back to the original printing position

Slotting Unit

  • Slotting phase adopts PLC and digital adjustment in 360 degrees whatever running and stop or use PLC and touch screen adjusting

  • Slotting pedestal and creasing wheels are horizontally moving and adopt electric synchronous adjustment. (PLC with touch screen adjustment as an option)

  • Creasing space and knife roller space adjust and adopts self-locking device

  • The carton height adjustment with anti-collision device for the slotting knives does not destroy the machine

  • Every slotting knife pedestals movement with anti-collision device (digital type)

  • Slotting knives width is 7mm and made of good quality with heat treatment, grinding, saw tooth knives

  • Two type cutting knives with sharp-edged and high precision

Die Cutting Unit

  • Option of hole and handle hold die

  • The phase of die roller adopts PLC and digital adjustment in 360 degrees whatever running and stop or use PLC and touch screen adjusting

  • Die roller movement adopts PLC and electric digital adjustment in ±10mm, PLC and touch screen is optional

  • The space adjustment between rubber roller and die roller adopt self-locking device, with air cylinder that adjusts quickly in large range, reduce rubber wear and prolong life

  • Feeding roller spaces adjust and adopts self-locking device

  • Speed compensation device can make the rubber roller slipping thereby; the rubber surface speed is controlled by the knife, so the carton shape is same as the knife die

  • Equipped with rubber repair device, the rubber can be used after being repaired

Gantry stacker with variable

Board Catching table

  • Manual and automatic control option

  • The conveyor belt of the board catching arm and its tension can be adjusted independently without any inhibition of belt length. It is easy, flexible and rapid in adjustment

Table lift-down

  • Use strong chain drive, lift-down move smoothly

  • Max stacking height 1300mm

  • The lift-down motor is equipped with the brake facility to keep it in the fix position

Baffle

  • Pneumatic control baffle, use sensor control stacking

  • Back baffle position is adjusted manually according to the board length

  • The plain belt has good friction coefficient to avoid the board slide

Vibrator unit

  • One-piece structure, solid and stable, mounted with wheel shaft and can adjust the position of work at any time, designed with elastic rod on the axle, and easy defusing with continuous jitter

  • High elasticity rod, longer life and no damage to the cardboard

  • The height of the elasticity rod and defragment can be adjusted

  • It has a waste transfer device

  • The control of speed meter can be adjusted as the waste speed

  • The whole machine is easy to use and operate

Technical parameters

Model

JCGA410-2300

JCGA410-2600

JCGA410-2800

Machine inside width (mm)

2300

2600

2800

Max feeding paper siz(mm)

1200mm x 2100mm

1200mm x 2400mm

1200mm x 2600mm

Max effective printing size(mm)

1200mm x 1900mm

1200mm x 2200mm

1200mm x 2400mm

Min coverage size(mm)

350mm x 500mm

300mm x 500mm

300mm x 500mm

Min slotting space(mm)

240 x 80 x 240 x 80

240 x 80 x 240 x 80

240 x 80 x 240 x 80

Design speed(pcs/min)

120pcs/min

120pcs/min

120pcs/min

Working speed(pcs/min)

80-100pcs/min

100pcs/min

100pcs/min

Standard Thickness of printing plate

6mm

6mm

6mm

Printing precision

±0.5mm

±0.5mm

±0.5mm

Thickness of cardboard

1.2-9mm

1.2-9mm

1.2-9mm

Wall thickness

40mm

40mm

40mm


Trade Information
  • FOB Port
  • Tianjin Port
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • Supply Ability
  • 100 Per Year
  • Delivery Time
  • 45 Days
  • Packaging Details
  • wooden cases, plastic or no package, wooden pallets
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
