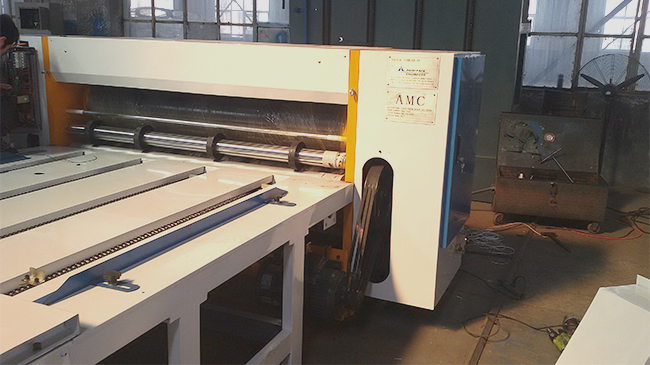

Semi Auto Chain Feeding Rotary Die Cutting Machine Electric Driven Type

Semi Auto Chain Feeding Rotary Die Cutting Machine Electric Driven Type
Send Inquiry
Product Code : 06
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price Range
  • 4000.00 - 30000.00 USD ($)
Product Specifications
  • Product Type
  • rotary die cutting machine
  • General Use
  • Chemical, Commodity, Food, Machinery & Hardware
  • Material
  • Other
  • Type
  • Other
  • Weight (kg)
  • 4000 Kilograms (kg)
  • Automatic
  • No
  • Cutting Function
  • Semi Automatic
  • Cooling System
  • Other
  • Drive Type
  • Electric
  • Voltage
  • 380V 50HZ
  • Dimension(L*W*H)
  • customized Millimeter (mm)
  • Feature
  • Low Energy Consumption, High Efficiency, Good Quality, Environmental Friendly, Low Noise, High Torque
  • Color
  • White
  • Warranty
  • 12 month
Product Description

Die-cutting roller up-down operation:

(Note: When automatic working status, must keep feeding sheets continuously, keep feeding two pieces sheet 1-2seconds, otherwise, the roller will down, and next sheet is waste)..


Model Roller diameter Max Over Sheet Size Min Over Sheet Size Speed Motor
JCMQJ-1500





φ410

1450*1350mm 350*500mm 40-60pcs/min 3.0kw
JCMQJ-1750 1700*1350mm 350*500mm 40-60pcs/min 3.0kw
JCMQJ-2000 1950*1350mm 350*500mm 40-60pcs/min 4.0kw
JCMQJ-2250 2200*1350mm 350*500mm 40-60pcs/min 5.5kw
JCMQJ-2500 2450*1350mm 350*500mm 40-60pcs/min 5.5kw
JCMQJ-1500





φ487

1450*1500mm 400*500mm 40-60pcs/min 4.0kw
JCMQJ-1750 1700*1500mm 400*500mm 40-60pcs/min 5.5kw
JCMQJ-2000 1950*1500mm 400*500mm 40-60pcs/min 5.5kw
JCMQJ-2250 2200*1500mm 400*500mm 40-60pcs/min 7.5kw
JCMQJ-2500 2450*1500mm 400*500mm 40-60pcs/min 7.5kw


Off Machine:



Firstly, rotate knob of speed controller to zero, switch off it, and then switch off air compressor then switch off M.unit.

Trade Information
  • FOB Port
  • Tianjin Port
  • Supply Ability
  • 150 Set Per Year
  • Delivery Time
  • 30 Days
  • Packaging Details
  • wooden pallets or wooden cases by LCL, and plastic or No package by FCL
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
